Wire Rope Slings

SINGLE PART BODY
MECHANICALLY SPLICED
WIRE ROPE SLINGS.

order wire rope slings
Eyes are typically formed using a flemish eye splice. The ends are secured by pressing a metal sleeve over the ends of the strands of the splice. Pull follows a direct line along the center of the rope and eye. Single part body mechanical splice slings have a higher rated capacity than hand-spliced slings.

FLEMISH EYE SPLICE

flemish eye spice

ln the standard flemish eye mechanical spllce,
wire rope is seperated into two parts: three adjacent strands to one part and three adjacent strands along with the core to the other part. The two parts are they re-laid back in opposite directions to form an eye, and ends are secured with a pressed metal sleeve.

SWAGING PROVIDES A
GOOD GRIP.

swaging wire rope slings

This photo shows a cutaway of a metal sleeve thats been swaged into a splice. Notice how metal flows into the valleys between strands to positively prevent ends from unlaying when the sling is used within its rated capacity.

CALL 866-392-2829 TO ORDER!

All styles and sizes of wire rope slings are available please call for pricing.

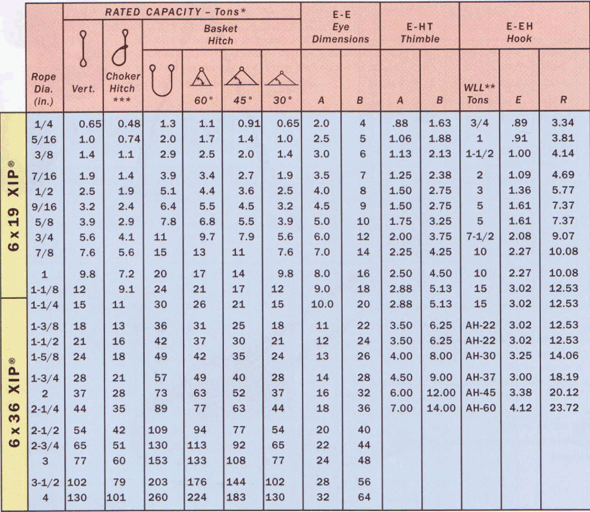

Below: All capacities in tons of 2,000 lbs. All eye and fitting dimensions in inches.
* Rated capacities basket hitch based on D/d ratio of 25.
Rated capacities based on pin diameter no longer than natural eye or less then the nominal sling diameter.
Rated capacities based on design factor 5. Horizontal sling angles less than 30° shall not be used.
**Working Load Limit, based on standard carbon fittings unless noted otherwise.

wire rope slings specifications
