Machine Chain Twist Link
|

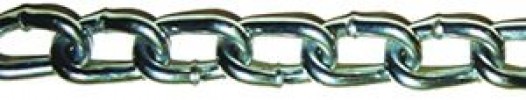

Electro Galvanized  IN USE |

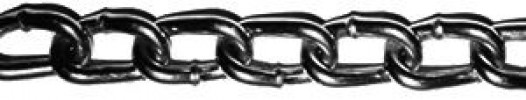

Machine Chain: A low carbon steel chain that is used in applications where high tensile strength is not required. It is used for tailgates, overhead doors and anywhere a general light duty chain is needed. Manufactured in regular or twist links that allow it to lie flatter.
Animal tie chains, security barrier, general utility, agricultural implements. Finish: EG, SC. |
 |
|||||
|
CHAIN SIZE
(TRADE SIZE) |
WORKING
LOAD LIMIT (LBS) |
WEIGHT
PER FOOT (LBS) |
MATERIAL DIAMETER
INCH |
INSIDE
LENGTH INCH |
INSIDE
WIDTH INCH |
|
4
|
205
|
0.12
|
0.118
|
0.52
|
0.17
|
|
2
|
310
|
0.19
|
0.146
|
0.58
|
0.21
|
|
1/0
|
440
|
0.28
|
0.174
|
0.68
|
0.26
|
|
2/0
|
520
|
0.32
|
0.189
|
0.73
|
0.28
|
