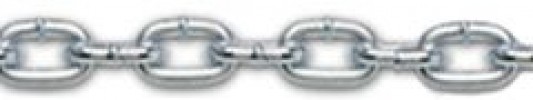

Machine Chain Straight Link
|
Electro Galvanized
|
Machine Chain: A low carbon steel chain that is used in applications
where high tensile strength is not required. It is used for tailgates, overhead doors and anywhere a general light duty chain is needed. Manufactured in regular or twist links that allow it to lie flatter. Animal tie chains, security barrier, general utility, agricultural implements. Finish: EG, SC. |
 |
|||||
|
CHAIN SIZE
(TRADE SIZE) |
WORKING
LOAD LIMIT (LBS) |
WEIGHT
PER FOOT (LBS) |
MATERIAL DIAMETER
INCH |
INSIDE
LENGTH INCH |
INSIDE
WIDTH INCH |
|
4
|
215
|
0.12
|
0.118
|
0.55
|
0.21
|
|
2
|
325
|
0.19
|
0.146
|
0.61
|
0.26
|
|
1/0
|
465
|
0.26
|
0.174
|
0.74
|
0.31
|
|
2/0
|
545
|
0.32
|
0.189
|
0.78
|
0.34
|
|
4/0
|
700
|
0.37
|
0.210
|
0.95
|
0.40
|
|
5/0
|
925
|
0.53
|
0.247
|
1.07
|
0.44
|
