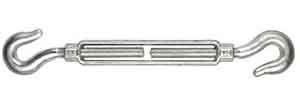

Hook & Hook Drop Forged Turnbuckles
Turnbuckles Meet Performance Requirements of
ASTM Specification F1145-92 Type 1 Grade 1 (Supercedes FF-T-791B) Available with hot galvanized or self-colored finish. |
|
|
To ascertain extended length add amount of take-up to length in closed position. Eye, Jaw and Hook fittings are heat treated. |
Dimensions - Inches
|
Working Load
Limit in Lbs. * |
|||
---|---|---|---|---|
A
|
B
|
C
|
D
|
|
1/4"
|
5/16"
|
9/32"
|
7/32"
|
400
|
5/16"
|
1/2"
|
1/2"
|
5/16"
|
700
|
3/8"
|
1/2"
|
1/2"
|
3/8"
|
1,000
|
1/2"
|
7/8"
|
13/16"
|
17/32"
|
1,500
|
5/8"
|
29/32"
|
27/32"
|
5/8"
|
2,250
|
3/4"
|
1-1/8"
|
29/32"
|
11/16"
|
3,000
|
7/8"
|
1-3/16"
|
1-1/16"
|
13/16"
|
3,200
|
1"
|
1-3/8"
|
1-1/4"
|
7/8"
|
5,000
|
Diameter & Take-up
|
Closed
Length |
Part Number
|
|
---|---|---|---|
Self Colored
|
Galvanized
|
||
1/4" x 4"
|
8-1/2"
|
02005 3
|
02155 5
|
5/16" x 4-1/2"
|
9-1/2"
|
02010 7
|
02160 9
|
3/8" x 6"
|
12"
|
02015 2
|
02165 4
|
1/2" x 2"
|
10"
|
02020 6
|
02170 8
|
1/2" x 6"
|
14-1/4"
|
02023 7
|
02173 9
|
1/2" x 9"
|
17-1/4"
|
02026 8
|
02176 0
|
1/2" x 12"
|
20-1/4"
|
02029 9
|
02179 1
|
5/8" x 6"
|
14-3/4"
|
02034 3
|
02184 5
|
5/8" x 9"
|
17-3/4"
|
02037 4
|
02187 6
|
5/8" x 12"
|
20-3/4"
|
02040 4
|
02190 6
|
5/8" x 18"
|
26-3/4"
|
02043 5
|
02193 7
|
3/4" x 6"
|
16-3/4"
|
02048 0
|
02198 2
|
3/4" x 9"
|
19-3/4"
|
02051 0
|
02201 9
|
3/4" x 12"
|
22-3/4"
|
02054 1
|
02204 0
|
3/4" x 18"
|
28-3/4"
|
02057 2
|
02207 1
|
7/8" x 6"
|
19"
|
02062 6
|
02212 5
|
7/8" x 12"
|
23-3/4"
|
02065 7
|
02215 6
|
7/8" x 18"
|
29-3/4"
|
02068 8
|
02218 7
|
1" x 6"
|
20"
|
02073 2
|
02223 1
|
1" x 12"
|
25-1/2"
|
02076 3
|
02226 2
|
1" x 18"
|
31-1/2"
|
02079 4
|
02229 3
|
