Model JPA Lifting Clamp

Vertical Lifting, Locking

The Model JPA is a vertical lifting clamp capable
of turning a single plate or member from horizontal
to vertical to horizontal through a 180 degree arc.
Incorporates a push button auxiliary lock.
Permits side loading of lifting shackle to 90 degrees
by derating of clamp's rated capacity.
Refer to specifications below for derated capacities.

Model JPA incorporates a pivoting shackle that permits
side loading of the lifting shackle at 100 percent of rated
capacity from vertical to 30 degrees, 75 percent of rated
capacity between 30 and 45 degrees and 50 percent of
rated capacity between 45 and 90 degrees.

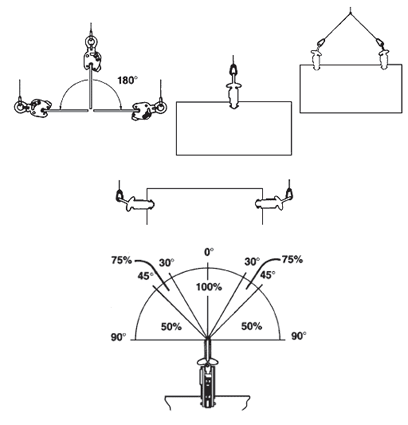

In Use

model JPA lifting Clamp

Rated Capacity Tons (each clamp)	Plate Thickness A	B	C	MAX. D	E	MAX. F	G	H	J
1/2	0-5/8	2 3/4	6 1/2	12	2 3/8	5 5/8	3 1/4	2 1/4	1/2
	1/2-1	2 3/4	6 1/2	12	2 3/8	6	3 1/4	2 1/4	1/2
	3/4-1 1/4	2 3/4	6 1/2	12	2 3/8	6 1/4	3 1/4	2 1/4	1/2
	1 1/4-1 3/4	2 3/4	6 1/2	12	2 3/8	6 3/4	3 1/4	2 1/4	1/2
1	0-3/4	3 3/8	7 3/4	13 3/4	2 5/8	7	3 1/2	2 5/8	5/8
	1/2-1	3 3/8	7 3/4	13 3/4	2 5/8	7 1/4	3 1/2	2 5/8	5/8
	3/4-1 1/4	3 3/8	7 3/4	13 3/4	2 5/8	8	3 1/2	2 5/8	5/8
	1-1 1/2	3 3/8	7 3/4	13 3/4	2 5/8	8 1/4	3 1/2	2 5/8	5/8
	1 1/2-2	3 3/8	7 3/4	13 3/4	2 5/8	8 3/4	3 1/2	2 5/8	5/8
2	0-1	3 5/8	9 1/2	17 3/8	3 1/2	8 3/4	4 1/2	3	3/4
	3/4-1 1/2	3 5/8	9 1/2	17 3/8	3 1/2	9 1/4	4 1/2	3	3/4
	1 1/4-2	3 5 /8	9 1/2	17 3/8	3 1/2	9 3/4	4 1/2	3	3/4
	2-2 3/4	3 5/8	9 1/2	17 3/8	3 1/2	10 1/2	4 1/2	3	3/4
4	3/16-1 1/4	4 3/8	11 1/2	20 1/8	3 1/2	9 1/4	4 1/2	3 1/4	1 1/2
	1-2	4 3/8	11 1/2	20 1/8	3 1/2	10	4 1/2	3 1/4	1 1/2
	2-3	4 3/8	11 1/2	20 1/8	3 1/2	11	4 1/2	3 1/4	1 1/2
	3-4	4 3/8	11 1/2	20 1/8	3 1/2	12	4 1/2	3 1/4	1 1/2
6	1/4-1 3/8	4 7/8	12 3/8	20 7/8	3 1/2	10 3/4	4 3/4	3 3/4	1 3/4
	1-2 1/8	4 7/8	12 3/8	20 7/8	31 /2	11 1/2	4 3/4	3 3/4	1 3/4
	2-3 1/8	4 7/8	12 3/8	20 7/8	3 1/2	12 1/2	4 3/4	3 3/4	1 3/4
	3-4 1/8	4 7/8	12 3/8	20 7/8	3 1/2	13 1/2	4 3/4	3 3/4	1 3/4
8	3/8-1 1/2	5 3/8	12 3/4	22 5/8	3 3/4	12 3/8	5 1/4	4 1/4	2
	1-2 1/8	5 3/8	12 3/4	22 5/8	3 3/4	13	5 1/4	4 1/4	2
	2-3 1/8	5 3/8	12 3/4	22 5/8	3 3/4	14 5/8	5 1/4	4 1/4	2
	3-4 1/8	5 3/8	12 3/4	22 5/8	3 3/4	15 5/8	5 1/4	4 1/4	2
12	1/2-2 1/2	7 1/4	17 3/8	28 1/8	3 7/8	15 15/16	7 1/16	5 3/8	2
	2-4	7 1/4	17 3/8	28 1/8	3 7/8	17 7/16	7 1/16	5 3/8	2
	4-6	7 1/4	17 3/8	28 1/8	3 7/8	19 7/16	7 1/16	5 3/8	2
	5 1/2-7 1/2
16	1/2-2 1/2	8	19 13/16	32 5/16	4 1/2	19 13/16	8 11/16	6 1/4	2 1/4
	2-3
	4-6
	5 1/2-7 1/2
20	1/2-3	8 5/8	21 13/16	35 7/8	5	21	11 1/2	6 7/8	2 3/4
	3-5
	5-7
	7-9
25	1/2-2 1/2	8 5/8	23 5/8	35 7/8	5	19 1/16	9 5/8	6 3/4	3
	3-5	8 5/8	23 5/8	35 7/8	5	21 9/16	9 5/8	6 3/4	3
	4-6	8 5/8	23 5/8	35 7/8	5	22 9/16	9 5/8	6 3/4	3
30	1/2-3	9 9/16	24 1/4	39 7/8	5	22 13/16	14 9/16	7 5/8	3
50	3-5	10 7/8	30 7/8	46 7/16	5	29 3/16	11 1/8	9 1/4	3 1/2
No operator should engage or attempt to engage in the use of any RENFROE® product until the applicable manual has been read and fully understood. Failure to review and utilize recommended applications, operating and maintenance instructions could result in serious injury to the operator and others. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. OTHER CAPACITIES AVAILABLE UPON REQUEST. CALL FOR PARTS 866.392.2829

Part Number
JPA-02.00-B-SS, JPA-08.00-A, JPA-08.00-C, JPA-08.00-B, JPA-06.00-D, JPA-06.00-C, JPA-06.00-B, JPA-06.00-A, JPA-04.00-D, JPA-04.00-A, JPA-04.00-C, JPA-08.00-D, JPA-00.50-A-SS, JPA-00.50-D-SS, JPA-02.00-D-SS, JPA-02.00-C-SS, JPA-02.00-A-SS, JPA-01.00-E-SS, JPA-01.00-C-SS, JPA-01.00-D-SS, JPA-01.00-B-SS, JPA-01.00-A-SS, JPA-00.50-C-SS, JPA-00.50-B-SS, JPA-04.00-B, JPA-02.00-B, JPA-16.00-C, JPA-16.00-B, JPA-16.00-A, JPA-12.00-D, JPA-12.00-C, JPA-12.00-B, JPA-12.00-A, JPA-00.50-C, JPA-00.50-B, JPA-00.50-D, JPA-16.00-D, JPA-01.00-A, JPA-01.00-E, JPA-02.00-D, JPA-02.00-C, JPA-02.00-A, JPA-20.00-D, JPA-20.00-C, JPA-20.00-B, JPA-20.00-A, JPA-01.00-C, JPA-01.00-D, JPA-01.00-B, JPA-00.50-A
Description
Stainless 2 ton - Plate Thickness 2-2 3/4" Model JPA Lifting Clamp, 20 ton - Plate Thickness 5-7" Model JPA Lifting Clamp, 20 ton - Plate Thickness 3-5" Model JPA Lifting Clamp, 20 ton - Plate Thickness 1/2-3" Model JPA Lifting Clamp, 16 ton - Plate Thickness 5 1/2-7 1/2" Model JPA Lifting Clamp, 16 ton - Plate Thickness 4-6" Model JPA Lifting Clamp, 16 ton - Plate Thickness 2-3" Model JPA Lifting Clamp, 16 ton - Plate Thickness 1/2-2 1/2" Model JPA Lifting Clamp, 12 ton - Plate Thickness 5 1/2-7 1/2" Model JPA Lifting Clamp, 12 ton - Plate Thickness 4-6" Model JPA Lifting Clamp, 12 ton - Plate Thickness 2-4" Model JPA Lifting Clamp, 20 ton - Plate Thickness 7-9" Model JPA Lifting Clamp, Stainless 1/2 ton - Plate Thickness 0-5/8" Model JPA Lifting Clamp, Stainless 1/2 ton - Plate Thickness 1/2-1" Model JPA Lifting Clamp, Stainless 2 ton - Plate Thickness 1 1/4-2" Model JPA Lifting Clamp, Stainless 2 ton - Plate Thickness 3/4-1 1/2" Model JPA Lifting Clamp, Stainless 2 ton - Plate Thickness 0-1" Model JPA Lifting Clamp, Stainless 1 ton - Plate Thickness 1 1/2-2" Model JPA Lifting Clamp, Stainless 1 ton - Plate Thickness 1-1 1/2" Model JPA Lifting Clamp, Stainless 1 ton - Plate Thickness 3/4-1 1/4" Model JPA Lifting Clamp, Stainless 1 ton - Plate Thickness 1/2-1" Model JPA Lifting Clamp, Stainless 1 ton - Plate Thickness 0-3/4" Model JPA Lifting Clamp, Stainless 1/2 ton - Plate Thickness 1 1/4-1 3/4" Model JPA Lifting Clamp, Stainless 1/2 ton - Plate Thickness 3/4-1 1/4" Model JPA Lifting Clamp, 12 ton - Plate Thickness 1/2-2 1/2" Model JPA Lifting Clamp, 8 ton - Plate Thickness 3-4 1/8" Model JPA Lifting Clamp, 2 ton - Plate Thickness 3/4-1 1/2" Model JPA Lifting Clamp, 2 ton - Plate Thickness 0-1" Model JPA Lifting Clamp, 1 ton - Plate Thickness 1 1/2-2" Model JPA Lifting Clamp, 1 ton - Plate Thickness 1-1 1/2" Model JPA Lifting Clamp, 1 ton - Plate Thickness 3/4-1 1/4" Model JPA Lifting Clamp, 1 ton - Plate Thickness 1/2-1" Model JPA Lifting Clamp, 1 ton - Plate Thickness 0-3/4" Model JPA Lifting Clamp, 1/2 ton - Plate Thickness 1 1/4-1 3/4" Model JPA Lifting Clamp, 1/2 ton - Plate Thickness 3/4-1 1/4" Model JPA Lifting Clamp, 1/2 ton - Plate Thickness 1/2-1" Model JPA Lifting Clamp, 2 ton - Plate Thickness 1 1/4-2" Model JPA Lifting Clamp, 2 ton - Plate Thickness 2-2 3/4" Model JPA Lifting Clamp, 4 ton - Plate Thickness 3/16-1 1/4" Model JPA Lifting Clamp, 8 ton - Plate Thickness 2-3 1/8" Model JPA Lifting Clamp, 8 ton - Plate Thickness 1-2 1/8" Model JPA Lifting Clamp, 8 ton - Plate Thickness 3/8-1 1/2" Model JPA Lifting Clamp, 6 ton - Plate Thickness 3-4 1/8" Model JPA Lifting Clamp, 6 ton - Plate Thickness 2-3 1/8" Model JPA Lifting Clamp, 6 ton - Plate Thickness 1-2 1/8" Model JPA Lifting Clamp, 6 ton - Plate Thickness 1/4-1 3/8" Model JPA Lifting Clamp, 4 ton - Plate Thickness 3-4" Model JPA Lifting Clamp, 4 ton - Plate Thickness 2-3" Model JPA Lifting Clamp, 4 ton - Plate Thickness 1-2" Model JPA Lifting Clamp, 1/2 ton - Plate Thickness 0-5/8" Model JPA Lifting Clamp
Brand
J.C. Renfroe, Made in the USA

Part Number	Description	Brand	Weight	Price	Quantity
JPA-00.50-A	1/2 ton - Plate Thickness 0-5/8" Model JPA Lifting Clamp	J.C. Renfroe	12 lbs	$1433.00	+ -
JPA-00.50-D	1/2 ton - Plate Thickness 1 1/4-1 3/4" Model JPA Lifting Clamp	J.C. Renfroe	12 lbs	$2094.00	+ -
JPA-00.50-B	1/2 ton - Plate Thickness 1/2-1" Model JPA Lifting Clamp	J.C. Renfroe	12 lbs	$2094.00	+ -
JPA-00.50-C	1/2 ton - Plate Thickness 3/4-1 1/4" Model JPA Lifting Clamp	J.C. Renfroe	12 lbs	$2094.00	+ -
JPA-12.00-A	12 ton - Plate Thickness 1/2-2 1/2" Model JPA Lifting Clamp	J.C. Renfroe	203 lbs	$5499.00	+ -
JPA-12.00-B	12 ton - Plate Thickness 2-4" Model JPA Lifting Clamp	J.C. Renfroe	212 lbs	$7746.00	+ -
JPA-12.00-C	12 ton - Plate Thickness 4-6" Model JPA Lifting Clamp	J.C. Renfroe	222 lbs	$7895.00	+ -
JPA-12.00-D	12 ton - Plate Thickness 5 1/2-7 1/2" Model JPA Lifting Clamp	J.C. Renfroe	222 lbs	$8159.00	+ -
JPA-16.00-A	16 ton - Plate Thickness 1/2-2 1/2" Model JPA Lifting Clamp	J.C. Renfroe	350 lbs	$7844.00	+ -
JPA-16.00-B	16 ton - Plate Thickness 2-3" Model JPA Lifting Clamp	J.C. Renfroe	350 lbs	$10977.00	+ -
JPA-16.00-C	16 ton - Plate Thickness 4-6" Model JPA Lifting Clamp	J.C. Renfroe	351 lbs	$11392.00	+ -
JPA-16.00-D	16 ton - Plate Thickness 5 1/2-7 1/2" Model JPA Lifting Clamp	J.C. Renfroe	350 lbs	$11801.00	+ -
JPA-01.00-A	1 ton - Plate Thickness 0-3/4" Model JPA Lifting Clamp	J.C. Renfroe	20 lbs	$1461.00	+ -
JPA-01.00-E	1 ton - Plate Thickness 1 1/2-2" Model JPA Lifting Clamp	J.C. Renfroe	20 lbs	$1938.00	+ -
JPA-01.00-B	1 ton - Plate Thickness 1/2-1" Model JPA Lifting Clamp	J.C. Renfroe	20 lbs	$1758.00	+ -
JPA-01.00-D	1 ton - Plate Thickness 1-1 1/2" Model JPA Lifting Clamp	J.C. Renfroe	20 lbs	$1938.00	+ -
JPA-01.00-C	1 ton - Plate Thickness 3/4-1 1/4" Model JPA Lifting Clamp	J.C. Renfroe	20 lbs	$1938.00	+ -
JPA-20.00-A	20 ton - Plate Thickness 1/2-3" Model JPA Lifting Clamp	J.C. Renfroe	456 lbs	$10204.00	+ -
JPA-20.00-B	20 ton - Plate Thickness 3-5" Model JPA Lifting Clamp	J.C. Renfroe	456 lbs	$14038.00	+ -
JPA-20.00-C	20 ton - Plate Thickness 5-7" Model JPA Lifting Clamp	J.C. Renfroe	456 lbs	$14484.00	+ -
JPA-20.00-D	20 ton - Plate Thickness 7-9" Model JPA Lifting Clamp	J.C. Renfroe	456 lbs	$14928.00	+ -
JPA-02.00-A	2 ton - Plate Thickness 0-1" Model JPA Lifting Clamp	J.C. Renfroe	40 lbs	$1882.00	+ -
JPA-02.00-C	2 ton - Plate Thickness 1 1/4-2" Model JPA Lifting Clamp	J.C. Renfroe	40 lbs	$2251.00	+ -
JPA-02.00-D	2 ton - Plate Thickness 2-2 3/4" Model JPA Lifting Clamp	J.C. Renfroe	40 lbs	$2311.00	+ -
JPA-02.00-B	2 ton - Plate Thickness 3/4-1 1/2" Model JPA Lifting Clamp	J.C. Renfroe	40 lbs	$2209.00	+ -
JPA-04.00-B	4 ton - Plate Thickness 1-2" Model JPA Lifting Clamp	J.C. Renfroe	50 lbs	$3411.00	+ -
JPA-04.00-C	4 ton - Plate Thickness 2-3" Model JPA Lifting Clamp	J.C. Renfroe	50 lbs	$3507.00	+ -
JPA-04.00-A	4 ton - Plate Thickness 3/16-1 1/4" Model JPA Lifting Clamp	J.C. Renfroe	50 lbs	$2409.00	+ -
JPA-04.00-D	4 ton - Plate Thickness 3-4" Model JPA Lifting Clamp	J.C. Renfroe	50 lbs	$3586.00	+ -
JPA-06.00-A	6 ton - Plate Thickness 1/4-1 3/8" Model JPA Lifting Clamp	J.C. Renfroe	72 lbs	$2958.00	+ -
JPA-06.00-B	6 ton - Plate Thickness 1-2 1/8" Model JPA Lifting Clamp	J.C. Renfroe	72 lbs	$4122.00	+ -
JPA-06.00-C	6 ton - Plate Thickness 2-3 1/8" Model JPA Lifting Clamp	J.C. Renfroe	72 lbs	$4397.00	+ -
JPA-06.00-D	6 ton - Plate Thickness 3-4 1/8" Model JPA Lifting Clamp	J.C. Renfroe	72 lbs	$4506.00	+ -
JPA-08.00-B	8 ton - Plate Thickness 1-2 1/8" Model JPA Lifting Clamp	J.C. Renfroe	93 lbs	$6390.00	+ -
JPA-08.00-C	8 ton - Plate Thickness 2-3 1/8" Model JPA Lifting Clamp	J.C. Renfroe	93 lbs	$6663.00	+ -
JPA-08.00-A	8 ton - Plate Thickness 3/8-1 1/2" Model JPA Lifting Clamp	J.C. Renfroe	93 lbs	$4573.00	+ -
JPA-08.00-D	8 ton - Plate Thickness 3-4 1/8" Model JPA Lifting Clamp	J.C. Renfroe	93 lbs	$6924.00	+ -

Model JPA Lifting Clamp
