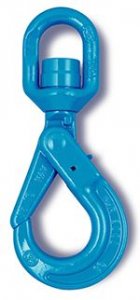

Grade 100 Swivel Self Locking Hook w/ Ball Bearing

Quenched and Tempered Alloy Steel.
At least 25% greater WLL than traditional G80 products.
Manufactured in accordance with EN 1677- 3 and ASME B30.26.
Proof Load tested at 2.5 times the WLL with
certification for each batch manufactured. Design Factor 4:1.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Tempering temperature minimum 400°C
Magnaflux crack detection is performed 100% on each batch.
Built with ball bearing and enables full swivel feature under load.

Part Number	Working Load Limit		For Grade 100 Chain inch	Dimensions (inch)						Weight (lbs)
Part Number	lbs*	tons*	For Grade 100 Chain inch	A	D	H	K	P	T	Weight (lbs)
X-027N-07	5,700	2.5	1/4 - 5/16	1.14	0.51	1.02	7.32	1.34	0.79	2.6
X-027N-10	8,800	4.0	3/8	1.34	0.63	1.34	8.58	1.73	1.02	4.4
X-027N-13	15,000	6.7	1/2	1.69	0.83	1.65	10.87	2.01	1.18	9.0
X-027N-16	22,600	10	5/8	1.97	0.91	2.20	12.95	2.36	1.42	15.0
X-027N-20	35,300	16	3/4	3.23	0.98	2.56	15.24	2.76	2.09	27.8

* Design factor 4:1 proof tested and certified.

Part Number	Description	Brand	Weight	Price	Quantity
X-027N-07	1/4 - 5/16" Grade 100 Swivel Self Locking Hook w/ Ball Bearing	Yoke	2.6 lbs	$243.20	+ -
X-027N-10	3/8" Grade 100 Swivel Self Locking Hook w/ Ball Bearing	Yoke	4.4 lbs	$291.75	+ -
X-027N-13	1/2" Grade 100 Swivel Self Locking Hook w/ Ball Bearing	Yoke	9 lbs	$438.64	+ -
X-027N-16	5/8" Grade 100 Swivel Self Locking Hook w/ Ball Bearing	Yoke	15 lbs	$761.64	+ -
X-027N-20	3/4" Grade 100 Swivel Self Locking Hook w/ Ball Bearing	Yoke	27.8 lbs	$1321.67	+ -
