Grade 100 Ball Bearing Swivel Eye Bolt

Name: Grade 100 Ball Bearing Swivel Eye Bolt
SKU: C817XC
Availability: InStock

Stamperia

Cartec Fittings are manufactured by Stamperia Carcano Giuseppe, spa in Italy.
They have been producing first class forgings since 1960.
All the Cartec forgings are approved by the German standards company BG Holz und Metall.
This can be identified with the quality mark "H92" on every piece.
This ISO 9001-2008 plant ensures complete material traceability on each product.

Call for Price and Availability

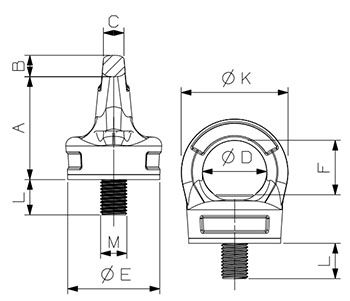

Part Number	Thread Size	Working Load Limit	Dimensions								Weight (Lbs)
Part Number	Thread Size	Working Load Limit	A	B	C	D	E	F	K	L	Weight (Lbs)
C817XC12	M12	0.75	53.50	11.00	11.00	34.00	44.00	32.00	56.00	18.00	1.01
C817XC16	M16	1.50	56.50	13.00	14.50	39.00	56.00	33.00	65.00	24.00	1.98
C817XC20	M20	2.30	67.00	14.00	17.00	42.00	58.00	40.00	70.00	30.00	2.53
C817XC24	M24	3.20	80.00	18.00	19.00	52.00	73.00	44.50	88.00	38.50	4.52
C817XC30	M30	4.50	101.00	22.00	27.00	62.00	80.00	53.00	106.00	44.00	8.82

Grade 100 Ball Bearing Swivel Eye Bolt
