Fixed Spreader Beam 2-10 ton

PICTURE SHOWN WITH OPTIONAL TOP RIGGING

Manufactured to exceed all ASME B30.20 and OSHA regulations.
Painted safety yellow for increased visibility.
ALL Spreader Beams shipped with proof load certification paperwork.
Durable construction ideally suited to jobsite or warehouse use.
Standard with swivel latch hooks.
Made in U.S.A.
Top rigging available - call for details.
Custom lettering available - call for details.
Custom designs available - call for engineering.
ALL lifting equipment individually proof loaded per OSHA requirements.

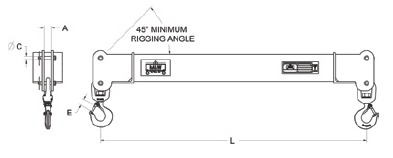

Minimum horizontal top rigging angle of 45°.
Ideally suited for adding stability to critical lifts.

Made in the USA!

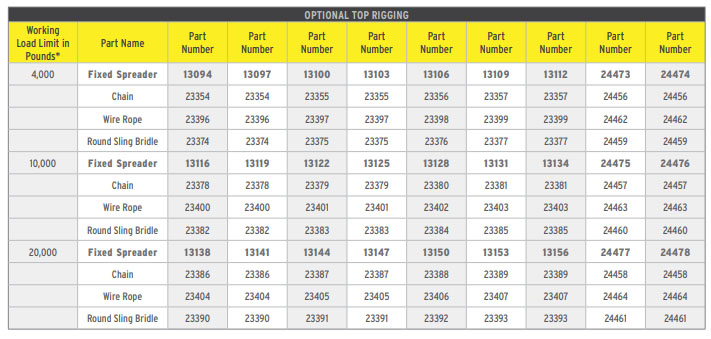

OPTIONAL TOP RIGGING AVAILABLE - Call for pricing 866.513.7336 Click Here to View Optional Top Rigging

Working Load Limit in Pounds*	Part Number HR = Headroom LBS = Weight of Beam	Outside Spread (L) in Feet*									A (in) C (in) E (in)
Working Load Limit in Pounds*	Part Number HR = Headroom LBS = Weight of Beam	4	6	8	10	12	16	20	25	30	A (in) C (in) E (in)
4,000	Part Number HR = LBS =	13094 7.37 30	13097 7.37 50	13100 8.12 90	13103 8.12 110	13106 8.12 130	13109 8.12 172	13112 8.12 215	24473 9.0 380	24474 9.1 455	1.00 0.50 .089
10,000	Part Number HR = LBS =	13116 8.23 36	13119 8.98 87	13122 8.98 112	13125 8.98 140	13128 9.98 190	13131 9.98 250	13134 9.98 306	24475 11.0 578	24476 11.3 680	1.31 0.75 1.08
20,000	Part Number HR = LBS =	13138 9.25 55	13141 11.00 115	13144 11.00 140	13147 11.00 170	13150 11.00 195	13153 12.00 380	13156 12.00 470	24477 13.0 895	24478 13.0 1065	1.66 1.00 1.31
* Call for specifications on larger sizes and capacities. 866.392.2829

Part Number	Description	Brand	Weight	Price	Quantity
13094	4 Ft. WLL 4,000 lbs. Fixed Spreader Beam	M&W	30 lbs	$1324.20	+ -
13100	8 Ft. WLL 4,000 lbs. Fixed Spreader Beam	M&W	90 lbs	$1583.28	+ -
13103	10 Ft. WLL 4,000 lbs. Fixed Spreader Beam	M&W	110 lbs	$1626.46	+ -
13106	12 Ft. WLL 4,000 lbs. Fixed Spreader Beam	M&W	130 lbs	$1727.22	+ -
13109	16 Ft. WLL 4,000 lbs. Fixed Spreader Beam	M&W	172 lbs	$1943.12	+ -
13112	20 Ft. WLL 4,000 lbs. Fixed Spreader Beam	M&W	215 lbs	$2101.45	+ -
13116	4 Ft. WLL 10,000 lbs. Fixed Spreader Beam	M&W	36 lbs	$1583.28	+ -
13119	6 Ft. WLL 10,000 lbs. Fixed Spreader Beam	M&W	87 lbs	$1655.25	+ -
13122	8 Ft. WLL 10,000 lbs. Fixed Spreader Beam	M&W	112 lbs	$1698.43	+ -
13125	10 Ft. WLL 10,000 lbs. Fixed Spreader Beam	M&W	140 lbs	$1842.36	+ -
13128	12 Ft. WLL 10,000 lbs. Fixed Spreader Beam	M&W	190 lbs	$2317.35	+ -
13131	16 Ft. WLL 10,000 lbs. Fixed Spreader Beam	M&W	250 lbs	$2634.00	+ -
13134	20 Ft. WLL 10,000 lbs. Fixed Spreader Beam	M&W	306 lbs	$2936.27	+ -
13138	4 Ft. WLL 20,000 lbs. Fixed Spreader Beam	M&W	55 lbs	$1986.30	+ -
13141	6 Ft. WLL 20,000 lbs. Fixed Spreader Beam	M&W	115 lbs	$2230.99	+ -
13144	8 Ft. WLL 20,000 lbs. Fixed Spreader Beam	M&W	140 lbs	$2346.14	+ -
13147	10 Ft. WLL 20,000 lbs. Fixed Spreader Beam	M&W	170 lbs	$2461.28	+ -
13150	12 Ft. WLL 20,000 lbs. Fixed Spreader Beam	M&W	195 lbs	$2576.43	+ -
13153	16 Ft. WLL 20,000 lbs. Fixed Spreader Beam	M&W	380 lbs	$3497.61	+ -
13156	20 Ft. WLL 20,000 lbs. Fixed Spreader Beam	M&W	470 lbs	$3843.06	+ -
13097	6 Ft. WLL 4,000 lbs. Fixed Spreader Beam	M&W	50 lbs	$1396.17	+ -
24473	25 Ft. WLL 4,000 lbs. Fixed Spreader Beam	M&W	380 lbs	$2385.75	+ -
24474	30 Ft. WLL 4,000 lbs. Fixed Spreader Beam	M&W	455 lbs	$2625.37	+ -
24475	25 Ft. WLL 10,000 lbs. Fixed Spreader Beam	M&W	578 lbs	$3016.05	+ -
24476	30 Ft. WLL 10,000 lbs. Fixed Spreader Beam	M&W	690 lbs	$3362.45	+ -
24477	25 Ft. WLL 20,000 lbs. Fixed Spreader Beam	M&W	895 lbs	$4526.68	+ -
24478	30 Ft. WLL 20,000 lbs. Fixed Spreader Beam	M&W	1065 lbs	$5078.84	+ -
