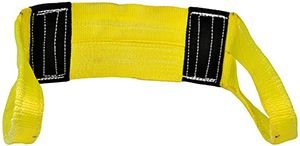

12" Width Wide Body Heavy Duty Cargo Basket Slings

Cargo Integral Eye (CIE)
The Cargo Integral Eye is for applications where a wide sling is needed for load stability or for protection of soft surfaces.
Spreads the load over a greater area.

Tulsa Chain Tag

Identification Tags and Product Warning Information
Tulsa Chain Slings have a heavy duty laser printed and
Vinyl coated tag designed to stay attached for the life of the sling.
In addition, all slings have attached caution labels and printed
warning sheets that include care, inspection and removal criteria.

Red Core Safety Yarns
Tulsa Chain Slings have red core safety yarns that
become visible when outer layers are worn, providing
a signal to remove sling from service. Polyester Round Slings
have red striped white load bearing yarns.

American Flag
Made in the USA!

Eye Body Wide Body Heavy Duty Cargo Basket

Click Here to download
Synthetic Sling Safety Guide

Wide Body Heavy Duty Cargo Basket Slings

All slings shown are manufactured to meet or exceed
current A.N.S.I. and stringent OSHA requirements.

Ply	Part Number	Basket WLL	Eye Width	Eye Length
1	WB1-912	38,400	2"	15"
2	WB2-912	72,000	3"	18"

To determine Body Length subtract Eye Length x 2 from Overall Length.

EXAMPLE

(IF Eye Length is 24" and Overall Body Length is 10'
24" x 2 = 48" (4 ft.)
10ft - 4ft = 6ft Body Length)

Part Number
WB1-912-10Ft, WB2-912-12Ft, WB2-912-14Ft, WB2-912-16Ft, WB2-912-18Ft, WB2-912-20Ft, WB2-912-22Ft, WB2-912-24Ft, WB2-912-26Ft, WB2-912-28Ft, WB2-912-30Ft, WB2-912-3Ft, WB2-912-4Ft, WB2-912-6Ft, WB2-912-10Ft, WB1-912-8Ft, WB1-912-12Ft, WB1-912-14Ft, WB1-912-16Ft, WB1-912-18Ft, WB1-912-20Ft, WB1-912-22Ft, WB1-912-24Ft, WB1-912-26Ft, WB1-912-28Ft, WB1-912-30Ft, WB1-912-3Ft, WB1-912-4Ft, WB1-912-6Ft, WB2-912-8Ft
Description
10" Wide Body Heavy Duty Cargo Basket Sling x 3 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 4 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 6 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 8 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 10 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 12 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 14 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 16 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 18 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 20 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 22 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 24 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 26 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 28 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 3 Ft. (2 Ply) Basket: 72,000 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 30 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 4 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 6 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 8 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 10 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 12 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 14 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 16 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 18 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 20 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 22 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 24 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 26 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 28 Ft. (1 Ply) Basket: 38,400 lbs., 10" Wide Body Heavy Duty Cargo Basket Sling x 30 Ft. (2 Ply) Basket: 72,000 lbs.
Brand
Tulsa Chain, Made in the USA

Part Number	Description	Brand	Weight	Price	Quantity
WB1-912-10Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 10 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	17.74 lbs	$276.72	+ -
WB1-912-12Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 12 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	24.54 lbs	$315.84	+ -
WB1-912-14Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 14 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	31.74 lbs	$354.97	+ -
WB1-912-16Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 16 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	40.54 lbs	$394.09	+ -
WB1-912-18Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 18 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	49.74 lbs	$433.21	+ -
WB1-912-20Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 20 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	60.54 lbs	$472.34	+ -
WB1-912-22Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 22 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	71.74 lbs	$511.46	+ -
WB1-912-24Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 24 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	84.54 lbs	$550.58	+ -
WB1-912-26Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 26 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	97.74 lbs	$589.71	+ -
WB1-912-28Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 28 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	112.54 lbs	$628.83	+ -
WB1-912-30Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 30 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	127.74 lbs	$667.95	+ -
WB1-912-6Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 6 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	7.74 lbs	$198.47	+ -
WB1-912-8Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 8 Ft. (1 Ply) Basket: 38,400 lbs.	Tulsa Chain	12.54 lbs	$237.60	+ -
WB2-912-10Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 10 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	17.74 lbs	$532.77	+ -
WB2-912-12Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 12 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	24.54 lbs	$644.87	+ -
WB2-912-14Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 14 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	31.74 lbs	$689.26	+ -
WB2-912-16Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 16 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	40.54 lbs	$767.51	+ -
WB2-912-18Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 18 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	49.74 lbs	$845.76	+ -
WB2-912-20Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 20 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	60.54 lbs	$924.00	+ -
WB2-912-22Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 22 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	71.74 lbs	$1002.25	+ -
WB2-912-24Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 24 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	84.54 lbs	$1080.49	+ -
WB2-912-26Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 26 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	97.74 lbs	$1158.74	+ -
WB2-912-28Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 28 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	112.54 lbs	$1236.99	+ -
WB2-912-30Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 30 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	127.74 lbs	$1315.23	+ -
WB2-912-6Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 6 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	7.74 lbs	$376.28	+ -
WB2-912-8Ft	10" Wide Body Heavy Duty Cargo Basket Sling x 8 Ft. (2 Ply) Basket: 72,000 lbs.	Tulsa Chain	12.54 lbs	$454.52	+ -

12" Width Wide Body Heavy Duty Cargo Basket Slings
