SCC QuickBinder PLUS - G80

SCC QuikBinder Plus
SCC QuikBinder Plus
SCC QuickBinder™ PLUS
X   NOT Approved
for Overhead Lifting

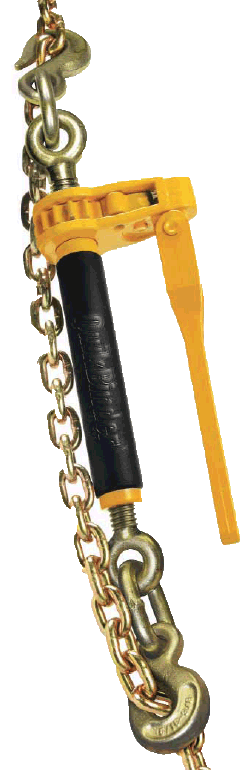

A ratchet binder like no other!
U.S. Patent #s: 6,945,516 B1;
7,055,804 B2; 7,229,065

This premium patented ratchet binder is unlike any other binder available on the market today.
Now it is better than ever, with higher working load limits designed for use with either Grade 70 (S-7) Transport or Grade 80 (T-8) Alloy tie-down chains.

SCC's QuikBinder™ PLUS is easier to install than standard ratchet loadbinders. The 3-position pawl offers the user a choice of ratchet extension, ratchet take-up or a "free spin" setting for fast adjustment in either direction. A load can be secured in half the time. It is available in three sizes and features a vinyl coated barrrel for a strong, comfortable grip.

The folding handle makes SCC's QuikBinder™ PLUS safer (no handle sticking out) and more convenient to use. Simply fold the handle down after the load is secure or when storing on your cab rack. Stronger, faster, safer and and more functional than standard ratchet binders.

The SCC QuikBinder™ PLUS can be locked to the tie-down chain with a long shank padlock, making it more difficult to tamper with the binder, assembly or the load. Padlocks with programmable combinations are available from SCC.

3 position pawl
3-Position pawl

tamper resistant
Tamper resistant

scc quickbinder

Click Here to View Video
QuikBinder Plus video

High (4.3 MB)       Low (1.5 MB)



SCC loadbinders meet all DOT/CVSA/CCMTA requirements.
The special hook construction supports the load of the chain and will not bind. Loadbinders are heat treated and proof tested with forged heat treated hooks. The Working Load Limit is permanently marked on handle. SCC loadbinders feature special links with controlled flash welds.
SCC's new QuikBinder PLUS™ now has higher strength ratings for use with either Grade 70 (S-7) Transport or Grade 80 (T-8) Alloy tie-down chains. Features yellow zinc plated hooks.

Categories | Ratchet & Lever Binders | SCC QuickBinder PLUS - G80
Displaying 1 through 1 of 1 products.

 SCC QuickBinderâ„¢ PLUS
SCC QuikBinder Plus ratchet
ORDER BELOW
Stock
Number
For Chain Size (In.)
Take-Up
(In.)
Handle Length Folded (In.)
Handle Length Straight (In.)
Working Load Limit
Factory
Package
WEIGHT
(lbs) / ea.
PRICE
LBS
KGS
H5125-0658
5/16 or 3/8
6.0
9.50
13.9
7,100
3,220
1
11.40
$38.55
H5125-0858
3/8 or 1/2
6.0
9.50
13.9
12,000
5,443
1
13.90
$44.56
H5125-0958
1/2 or 5/8
6.0
9.50
13.9
18,100
8,210
1
18.20
P.O.R.
WARNING: Failure to comply with instructions may result in property damage, serious personal injury or and/or loss of life. Loadbinding systems store energy which can release suddenly, causing serious injury. Stay clear of handles, bars and other binding equipment as it could release without warning and with extreme force. Observe the working load limit as stated in catalog and on tags to determine the number of tie-down assemblies and/or hardware required for safe operation per federal D.O.T. FMCSA 49 CFR Parts 392-393 and the CVSA vehicle inspection criteria. Remember, all assemblies are only as strong as their weakest point, including the point of attachment. Use extreme caution when tensioning the binder on a chain assembly to assure the chain links are fully seated in the hook belly before releasing the pressure on the loadbinder. Always keep hands and fingers away from the chain path and keep head and body out of the path of the loadbinder handle in case of slippage or kickback.

Loadbinder extensions:
Only use combination winch bars designed with a binder cradle to assist in tightening a loadbinder. Insure that the loadbinder handle is fully inserted into the winch bar cradle and locked in place. Failure to do so may cause the bar to slip and result in serious personal injury and/or loss of life. Loadbinders will tighten adequately with the torque generated by hand pullover or ratcheting. Never use pipe or unapproved extensions (cheater bars).
