Coil Chain

coil chain specifications
SPECIFICATIONS
    Coil Chain - twist
   Welded steel chain used in many light duty industrial applications.
   Furnished as straight or twist.
Chain Size
(Trade Size)
Working
Load Limit
(lbs)
Weight
per 100 ft.
(lbs)
Material
Diameter
(in.)
Inside
Length
(in.)
Inside
Width
(in.)
#4
195
10
.118
1.09
.18
#2
295
16
.146
1.15
.22
1/0
415
24
.174
1.22
.27
2/0
495
27
.189
1.24
.29
4/0
635
33
.210
1.34
.33
5/0
835
47
.247
1.47
.38
   Coil Chain - straight
Chain Size
(Trade Size)
Working
Load Limit
(lbs)
Weight
per 100 ft.
(lbs)
Material
Diameter
(in.)
Inside
Length
(in.)
Inside
Width
(in.)
#4
205
10
.118
1.11
.21
#2
310
16
.146
1.18
.26
1/0
440
23
.174
1.25
.31
2/0
520
26
.189
1.30
.34
4/0
670
35
.210
1.39
.38
5/0
880
46
.247
1.55
.45




Categories | Weldless & General Use Chain | Coil Chain
Displaying 1 through 1 of 1 products.

Laclede  Coil Chain
coil chain twist link or straight link low carbon steel

Coil Chain: Once called liberty coil, this chain is made of low
carbon steel. Manufactured using smaller wire diameters
and longer links. It is cost effective for light duties. Primarily
used for agricultural implements and animal tie outs, tailgates,
playground equipment and general utility. Can be furnished as
straight or twist. Finish: EG, SC.

coil chain twist link

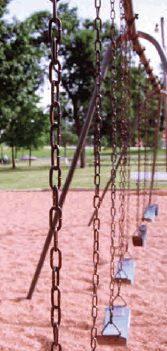

Coil chain straigh in use
Coil Chain Straight
Coil Chain - Twist Link
Chain Size Part Number Feet Per Carton Finish Price Per Carton
#4 1719-512-04 100 Ft. E. Galv. $72.68
#2 1726-512-04 100 Ft. E. Galv. $76.50
1/0 1733-512-04 100 Ft. E. Galv. $89.90
2/0 1736-512-04 100 Ft. E. Galv. $91.94
4/0 1743-512-04 100 Ft. E. Galv. $115.64
5/0 1749-512-04 100 Ft. E. Galv. $155.43
coil chain straight
Coil Chain - Straight Link
Chain Size Part Number Feet Per Carton Finish Price Per Carton
#4 1619-512-04 100 Ft. E. Galv. $60.26
#2 1626-512-04 100 Ft. E. Galv. $60.26
1/0 1633-512-04 100 Ft. E. Galv. $70.88
2/0 1636-512-04 100 Ft. E. Galv. $84.53
4/0 1643-512-04 100 Ft. E. Galv. $112.79
5/0 1649-512-04 100 Ft. E. Galv. $136.49

Order below by choosing the
part number you would like to order!

Price: Based on Selection
FREE Shipping on all orders over $399 This offer is valid in the continental United States only.
Orders Totaling $ .01 - $ 50.00 have a flat shipping rate of $10.00
Orders Totaling $ 50.01 - 398.99 will have exact UPS shipping charges applied
Orders Totaling Over $ 399.00 will have FREE Shipping! Some product exclusions apply.
See freight policy for details. You will receive an email with exact shipping charges after you place your order.
Or you can call 866-392-2829 for a quote on shipping before order is placed.Shipping: Calculated at Checkout
Status: In-Stock
Qty  carton
